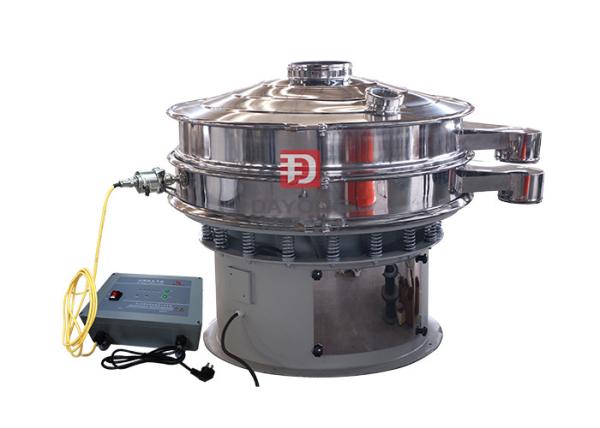

Stainless Steel 3d Cosmetics Ultrasonic Separator / Round Ultrasonic Vibro Screen
Working Principle
Ultrasonic vibrating sieve is standard vibrating sieve machine added an extra ultrasonic equipment on it.
The ultrasonic wave added on the sieve mesh makes the vibrating sieve able to screen/sieve fine powder/micro powder efficiently and precisely. The giant ultrasonic acceleration restrains blockage factors which includes adhesion, friction, wedging etc and improves sieving and cleaning efficiency.
Technical Parameters
| Model |
Power |
Sieving diameter |
Effective area (m2) |
Volume (mm) |
Nets layer |
| DYC400-1S |
0.18 |
320mm |
0.0804 |
580*580*560 |
1 |
| DYC600-1S |
0.55 |
550mm |
0.2124 |
800*800*680 |
1 |
| DYC800-1S |
0.75 |
750mm |
0.4072 |
900*900*780 |
1 |
| DYC1000-1S |
1.5 |
950mm |
0.6221 |
1160*1160*880 |
1 |
| DYC1200-1S |
1.75 |
1150mm |
0.9331 |
1360*1360*980 |
1
|
Main Features
By improving the low density of powder in the gravity settling down and sliding, improve the high density of metal in the front-end ports stranded or wedging and the adhesion effect of electrostatic powder, to improve the quality of screening and screening efficiency. In screening pass rate, usually more than the ordinary vibration sieve pass rate of 50% to 440%.
Using Industry
Ultrasonic rotary vibrating screen is widely used in metallurgy powder, electromagnetic materials, metal powder, iron powder, zinc oxide, alumina powder, alloy powder, molybdenum powder, cobalt powder, carborundum, copper, nickel powder, silica powder, titanium oxide, tungsten carbide, tungsten powder, titanium powder, stainless steel powder etc.
Our Company:
Xinxiang Dayong Vibratory Equipment Co., Ltd. is located in China's vibrating screen points of mechanical equipment - Xinxiang (vibrating screen equipment of the township), is the early production of vibrating screen points of professional mechanical equipment manufacturers, rich manufacturing experience, strong technical force, advanced and efficient management team.Has a complete production equipment sophisticated detection means perfect after-sales service and a number of highly qualified technical personnel and scientific management mode, set up a adapt to the factory actual modern enterprise management system and quality guarantee system.
After service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller engineer. We will send some free set of spare parts for you change it.
